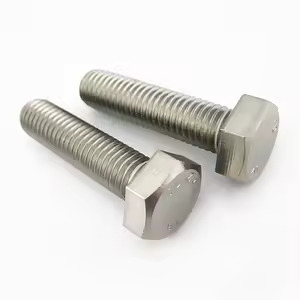

Key Characteristics of Heavy Hex Bolts
Hexagonal Head:
The head of a heavy hex bolt is larger and thicker than a standard hex bolt, providing greater strength and a more robust grip for wrenches or spanners.
The increased size allows for more torque to be applied during tightening, which is essential in high-stress environments.
Threading:
Heavy hex bolts come with either coarse threads or fine threads:
> Coarse threads (UNC - Unified National Coarse) are typically used in applications where rapid assembly or disassembly is needed, and where resistance to damage during installation is a concern.
> Fine threads (UNF - Unified National Fine) offer higher strength in tension and are used in applications requiring precision and resistance to vibration.
The bolts may have either partial or full threading, depending on the required strength and length of engagement.
Shank and Length:
Heavy hex bolts have varying shank lengths depending on the application. The unthreaded portion (shank) provides added shear strength for certain applications.
Available in a wide range of lengths to accommodate different fastening needs.
Material Composition:
Heavy hex bolts are typically made from high-strength carbon steel or alloy steel, and they can also be found in stainless steel for corrosion resistance.
Bolts designed for extreme environments may be coated with galvanization, black oxide, or zinc to protect against rust, corrosion, and wear.
Grade and Strength:
Heavy hex bolts come in different grades, each offering varying levels of tensile strength:
> Grade 2: Standard low-carbon steel, suitable for light-duty applications.
> Grade 5: Medium-strength bolts commonly used in automotive and construction industries.
> Grade 8: High-strength bolts used in heavy machinery, structural steel, and high-stress environments.
ASTM A325 & A490: Structural bolts with specific requirements for use in steel-to-steel connections, typically used in construction and infrastructure projects.
Size Range:
Heavy hex bolts are available in diameters ranging from 1/4 inch to over 2 inches. Larger diameters are generally used for heavy-duty applications where significant load-bearing capacity is required.
The head size for heavy hex bolts is generally 1/8 inch larger than that of a standard hex bolt of the same diameter.
Types of Heavy Hex Bolts
ASTM A325 & A490: These are high-strength bolts specifically designed for use in structural steel joints. They are frequently used in bridges, buildings, and other major infrastructure projects.
Application: Connecting structural elements in steel constructions.
These bolts are made from alloy steel and are heat-treated for maximum strength and durability.
Application: Used in high-stress environments, including heavy machinery, automotive, and equipment assembly.
Made from corrosion-resistant stainless steel (e.g., 316 stainless steel), these bolts are ideal for use in environments exposed to moisture or chemicals.
Application: Marine, chemical plants, and outdoor structures that require rust protection.
Hot-Dipped Galvanized Heavy Hex Bolts:
These bolts are coated with a thick layer of zinc through the hot-dip galvanizing process to protect against corrosion.
Application: Used in outdoor, industrial, and marine environments where exposure to the elements is a concern.
Specifications of Heavy Hex Bolts
Diameter:
Heavy hex bolts come in various diameters, typically ranging from 1/4 inch to 2 inches for imperial sizes, or M6 to M52 for metric sizes.
The larger the diameter, the greater the load-carrying capacity.
Length:
The length of heavy hex bolts varies depending on the application. Standard lengths range from 1 inch to 20 inches or more.
Thread Pitch:
The thread pitch (distance between threads) can either be coarse (UNC) or fine (UNF), affecting the holding power and tightening precision of the bolt.
Tensile Strength:
Heavy hex bolts have different tensile strengths based on their material grade. For example, Grade 8 bolts have a minimum tensile strength of 150,000 psi, while ASTM A325 bolts have a tensile strength between 105,000 psi and 120,000 psi.
Standards and Compliance:
Heavy hex bolts are often manufactured to industry standards such as ASTM (American Society for Testing and Materials), SAE (Society of Automotive Engineers), or ISO (International Organization for Standardization).
Applications of Heavy Hex Bolts
Construction and Structural Applications:
Heavy hex bolts are extensively used in steel-to-steel connections in buildings, bridges, and other infrastructure projects. Their large head size distributes the load more effectively, making them suitable for high-stress joints.
Examples: Connecting I-beams, trusses, and girders.
Heavy Machinery:
Heavy hex bolts secure parts in heavy equipment and machinery, providing high strength and durability for machines subjected to extreme forces.
Examples: Industrial presses, excavators, and cranes.
Automotive and Aerospace Industries:
High-strength heavy hex bolts are used in critical automotive components, particularly in engine assemblies, transmissions, and suspension systems.
Examples: Mounting of engine blocks, chassis connections, and high-load bearing areas.
Marine and Offshore Industries:
Corrosion-resistant heavy hex bolts, particularly those made of stainless steel or galvanized steel, are essential in marine and offshore applications where moisture and salt exposure are prevalent.
Examples: Securing structural components on ships, oil rigs, and docks.
Power Plants and Energy Sectors:
Heavy hex bolts are employed in power generation facilities, securing turbines, reactors, and other critical components that demand long-lasting performance under high-stress conditions.
Examples: Wind turbines, hydroelectric dam structures, and nuclear reactor assemblies.
