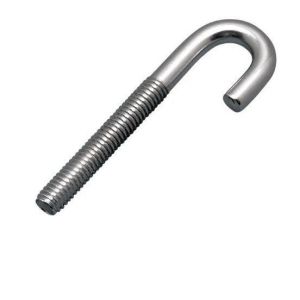

Key Characteristics of J Bolts
J-Shape:
J-bolts have one straight, threaded end and a curved, hook-like section that forms the "J"
shape.
The curved end is often embedded in concrete or other surfaces, providing a strong hold.
Threaded End:
The straight section of the J-bolt is threaded to allow the attachment of nuts and washers.
The
length of the thread can vary, depending on the application and the materials being fastened.
Materials:
J-bolts are made from a variety of materials to suit different applications:
Carbon Steel: The most common material for J-bolts due to its strength and durability.
Stainless Steel: Ideal for environments that require corrosion resistance, such as marine or
outdoor applications.
Galvanized Steel: Provides enhanced rust resistance for use in harsh weather or moisture-prone
conditions.
Brass and Bronze: Used in specialized applications requiring non-corrosive properties and
aesthetics.
Finishes:
J-bolts are often treated with protective coatings to enhance their resistance to rust and
corrosion. Common finishes include:
Hot-Dip Galvanized: Offers excellent corrosion protection for outdoor and marine environments.
Zinc-Plated: Provides a level of corrosion resistance suitable for indoor and mild outdoor
conditions.
Electro-Plating: Adds a thin protective coating for light-duty applications.
Types of J-Bolts
Standard J-Bolts:
Description: The most common type of J-bolt with a simple hook shape and threaded straight
section.
These are widely used in general construction and anchoring applications.
Applications: Securing structures to concrete foundations, such as poles, columns, and beams.
Custom J-Bolts:
Description: J-bolts can be customized in terms of material, thread length, diameter, and curve
shape to meet the specific needs of unique projects.
Applications: Specialized construction projects, industrial equipment installations, and
architectural projects.
Bent J-Bolts (90-Degree):
Description: A variation of the J-bolt where the curve is bent at a 90-degree angle, providing a
different anchoring solution.
Applications: Often used in fencing or similar applications where a non-standard curve is
required.
Specifications of J-Bolts
Diameter:
The diameter of J-bolts can range from small sizes, such as 1/4 inch, to larger sizes like 1
inch or more, depending on the load-bearing requirements.
The diameter directly influences the
strength and load capacity of the bolt.
Length:
J-bolts come in various lengths, with typical lengths ranging from 4 inches to 24 inches or
more.
The length determines the depth at which the bolt can be embedded in concrete or other
materials, influencing the strength of the anchoring.
Thread Length:
The length of the threaded section can vary based on the material thickness and load
requirements.
Longer threaded sections allow for more secure fastening with nuts and washers.
Material Strength:
The tensile strength of J-bolts is often rated according to standards such as ASTM A307, ASTM
A193, or ASTM F1554,
ensuring that the bolt can withstand the required loads in construction or
industrial applications.
Finishes and Coatings:
To protect against corrosion and wear, J-bolts may be finished with hot-dip galvanization, zinc
plating, or electro-plating.
These coatings enhance the longevity of the bolts, especially in
outdoor or industrial environments.
Standards:
J-bolts are manufactured to meet industry standards such as:
ASTM A307: Standard for carbon steel bolts used in general applications.
ASTM A193: For stainless steel bolts used in high-temperature and corrosive environments.
ISO 9001: Ensures the quality and safety compliance of J-bolts in different industries.
Applications of J-Bolts
Concrete Anchoring:
J-bolts are widely used as anchor bolts in construction to secure structures to concrete
foundations.
The curved part of the bolt is embedded in concrete, while the threaded end is
exposed for securing beams, columns, or poles.
Examples: Anchoring structural steel columns, light poles, and bridges to concrete foundations.
Pole and Post Installation:
J-bolts are often used to anchor poles, posts, and fences to the ground.
The hook shape helps
them hold firmly in concrete, making them ideal for securing outdoor structures.
Examples: Mounting fence posts, traffic signs, and light poles to concrete bases.
Construction of Steel Structures:
In the construction of steel buildings and infrastructure, J-bolts are used to anchor steel
frames and girders to concrete foundations.
They are a critical component in ensuring the
stability of the structure.
Examples: Anchoring steel girders, industrial equipment, and bridge supports to concrete bases.
Highway and Road Construction:
J-bolts are used to secure road signs, barriers, and guardrails to concrete surfaces.
Their
ability to hold under pressure makes them ideal for use in highway construction and safety
features.
Examples: Attaching road signs, guardrails, and crash barriers to concrete slabs.
Marine and Offshore Applications:
Stainless steel or galvanized J-bolts are often used in marine and offshore applications, where
their corrosion resistance ensures long-term durability in saltwater environments.
Examples: Securing dockside equipment, boat mooring anchors, and offshore platforms.
Automotive and Industrial Equipment:
J-bolts are used in automotive manufacturing and the installation of heavy industrial machinery.
They help anchor equipment to floors or platforms, providing stability during operation.
Examples: Mounting engines, securing industrial pumps, and anchoring machinery.
Fencing and Decking:
In residential and commercial construction, J-bolts are used to secure fencing posts, deck
supports, and similar outdoor structures to concrete or other solid surfaces.
Examples: Anchoring deck posts, pergolas, and fencing panels to concrete footings.
